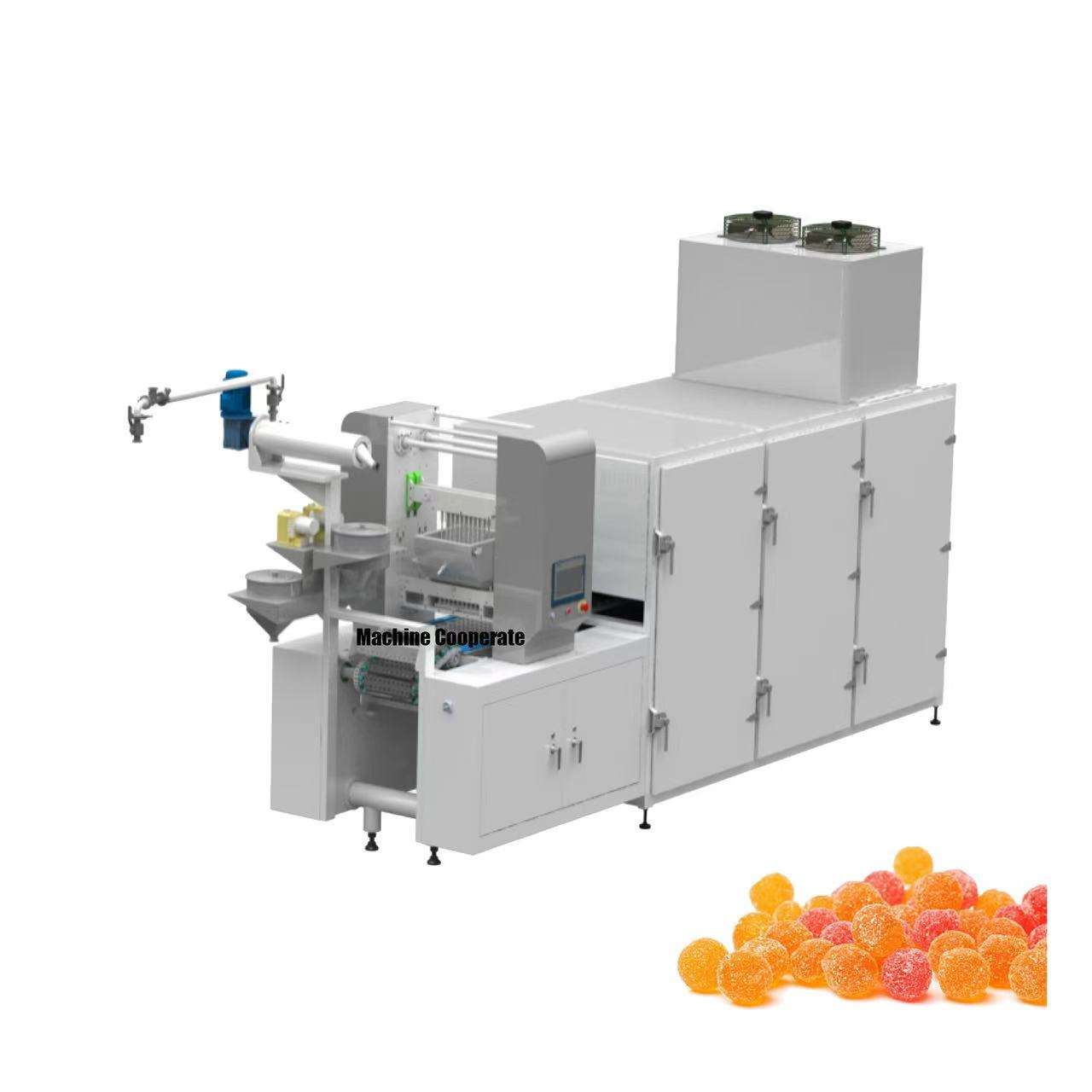

USA Mini Fully Automatic Gummy Bear Candy Making Machine Rental

#1 Gummy Bear Production Line Wholesaler - Find The Perfect Gummy Bear Production Line For Your Need. No Middle Man - Buy Gummy Bear Production Line From Trusted Factory Directly. Industry Warranties For Gummy Bear Production Line - 24/7 Support - Quote In 5 Min or Less. Best Gummy Bear Production Line For Sale - Gummy Bear Production Line Factory -OEM/ODM with Lowest Prices

40-Mini automatic candy depositor

• Temperate setting hopper
• Servo depositing
• PLC adjustable depositor size control
• 24cavity per shot
• Digital oil sprayer
• Automatic transfer to a mufti-layer cooling system
• Automatic De-mold and transfer out
• Digital variable temperature control
• Free spare parts for maintain
• Quick assembly & quicker use
• Visual window safety production protect
• Compact space-saving design for 13ft length

APPLICATIONS

Vitamins, Minerals, Fibre, CBD, Energy Supplements, OTC Medications,100% Fruit Pastes & Pieces, Low-sugar & Sugar-Free Products

• Sugar Dissolving Tank,
• Transfer Pumps and Storage Tank
• Auto Dosing System
• Dynamic Inline Mixer
• Auto Oil Spraying System
• Servo depositor
• Servo-Drive Conveyor
• Cooling Tunnel
• De-molding system

Auxiliary Support

• Sugar Coating Drum
• Oil sprayer
• Gummy Drying Trays



Depositing and cooling (Forming)



Additions Dosing（New Design CFA System）

Colors, flavors, and acid powder (CFA) are added directly to the syrup, where a similar system is usually used to add active ingredients.

The basic CFA addition system includes a storage tank and a peristaltic pump. To keep the additives in the best condition, the flow meter control loop can be added to the pump to achieve the best accuracy.

Each additive has its own system and is independently supplied to the pouring device. They can be incorporated into the syrup using a static or dynamic in-line mixer and then the mixing cone is opened. Different choices depend on the nature of the additives



Oil sprayer

Individual nozzles cone shape spray the oil to cavities of the mold, for saving oil and sanitary condition.



Servo depositor

Servo control is more precise and quiet, touch screen adjusts product weight.



Servo-Drive Conveyor

Adjust the matching degree with depositing, adjust the cooling time



Quick change type of molds

Our uniquely designed quick-release system can shorten the time of mold installation and disassembly, reduce labor costs, and improve production efficiency.



Cooling Tunnel

Our uniquely designed new freezer system can quickly help the candy cool down and accelerate the formation of the candy, which can greatly improve production efficiency. We use environmentally friendly refrigerants, which can meet the high standards of environmental protection requirements in Europe, America and other regions



De-molding system

According to different needs, we can be equipped with sugar powder coating machines, polishing machines that can make candies show different colors. Can greatly enrich the appearance and types of candies.



The small drying equipment we provide can greatly reduce investment costs, allowing you to open up new businesses with minimal investment. When your confectionery business is on the right track, you can immediately replace it with large-scale production equipment.



Mixing & Cooking

Move-able cooking system

• Small batch cooker on cart/wheel
• Independent control system
• Temperature setting
• Scraping stirring
• Homogenizer
• Digital display
• Visual window
• Convenient discharge
• Quick assembly & quicker use

• Stainless steel stirrer
• Jacketed for heating
• Stainless steel framework, Insulated sides.
• Complete automation system
• Independent control system
• Transfer by pump & pipes
• modularization for a quick install

It is an automatic ingredient dissolving and mixing system for pre-cooking the syrup of candy and beverage solutions.
Mix raw materials such as sugar and glucose. Add all the raw materials into the cooker, the cooking is complete, and the syrup will be transferred to the storage tank through the pump. The storage tank adopts a multi-layer design, and the interlayer can be filled with hot and cold water to maintain the temperature of the liquid in the tank, and cool or store different types of pectin or gelatin as a buffer tank for continuous production.



As consumers realize that treating diseases and adjusting their diet is not necessarily an unpleasant experience, they are increasingly using functional confectionery products to achieve the effects of over-the-counter drugs or dietary supplements.

Functional and medicated candies are not uncommon, but the accuracy and hygiene of modern cooking and deposition techniques have expanded their potential applications.

Functional and Medicated Applications for Gummy

Functional elements range from increasing the intake of essential nutrients (such as vitamins, minerals, fiber, and protein) to adding beneficial supplements (such as folic acid and omega-3) to the diet. The field has also expanded to sports nutrition, where candies are very suitable for portable and convenient energy supplement products.

For active Ingredients

Deposition can add different forms of active ingredients at different stages.

Heat-stable ingredients can be added at the beginning of the weighing and mixing process, while small-volume liquid additives can be mixed after cooking using a high-precision color/flavor mixing system. The viscous component can be filled as a sandwich, which can be encapsulated in any viscous outer layer.

Volatile components are added just before the depositing device hopper, and its retention time is short, which can minimize evaporation. You can also add powder or other small inclusions to the candy before pouring.

The main feature of cooking and deposition is the core of the successful production of functional and medicated candies.

Although cooking is performed at high temperatures, the addition of active ingredients is usually delayed until just before the deposition to avoid loss or degradation. The deposition is carried out at a lower temperature and then rapidly cooled to increase the stability of the composition.

High-precision metering and dosing equipment ensure that the correct proportion of active ingredients is added to the cooked syrup. When combined with the very precise piece weight control provided by the deposition, the result is that each piece contains the correct amount of active ingredient.

The ability to accurately control the rate of addition is particularly important for cost control when it is necessary to overdose the active ingredient to provide an acceptable shelf life.

Q&A

Q1:  I don’t have experience & formula, can you help?
-A: Yes, we are offeringa  full scope plan from formula to product support

Q2:  Can I make hard candy on this machine?
-A： Yes, but also taffy candy, lollipops too.

Q3: What's the machine voltage and Amp?
-A: We customize the equipment according to your voltage, and with different voltages, we will calculate the ampere list for you.

Q4: I want to add a pharmacy inside the candies. Does your machine have a certificate to help me pass the FDA requirements?
-A: Yes,We have CE and used all brands by UL & EU listed in strict accordance with GMP Stander.

Q5：What else do i need to prepare? Does this machine need clean compressed air?
A: Considering most customers' space limitations, this machine only needs to connect the power, saving the customer money and simplifying the evolution of compressed air flow. Use a servo with simpler and smarter control; no need to connect extra systems for the machines.

Q6: How should I set the temperature and candy weight?
-A: By the control box and touch screen settings, to adjust.

Q7: Do I need to move the molds to the cooling step?
-A: No, the machine is fully automatic from the depositor and cool,you only need to collect the candy and exit the machine!

Q8: Do I need an expert to install the machine?
-A: Machine electrical is by quick coupler and easy setting on touch screen like a smart phone or if you need we have local technology support team can help.

How much does it cost for the full line?Is it expensive?
-A: Contact us now!

We provide Nutrition gummy bear candy making machine,If you are interested in Nutrition gummy bear candy making machine,You can browse related products and initiate consultations on our website.
